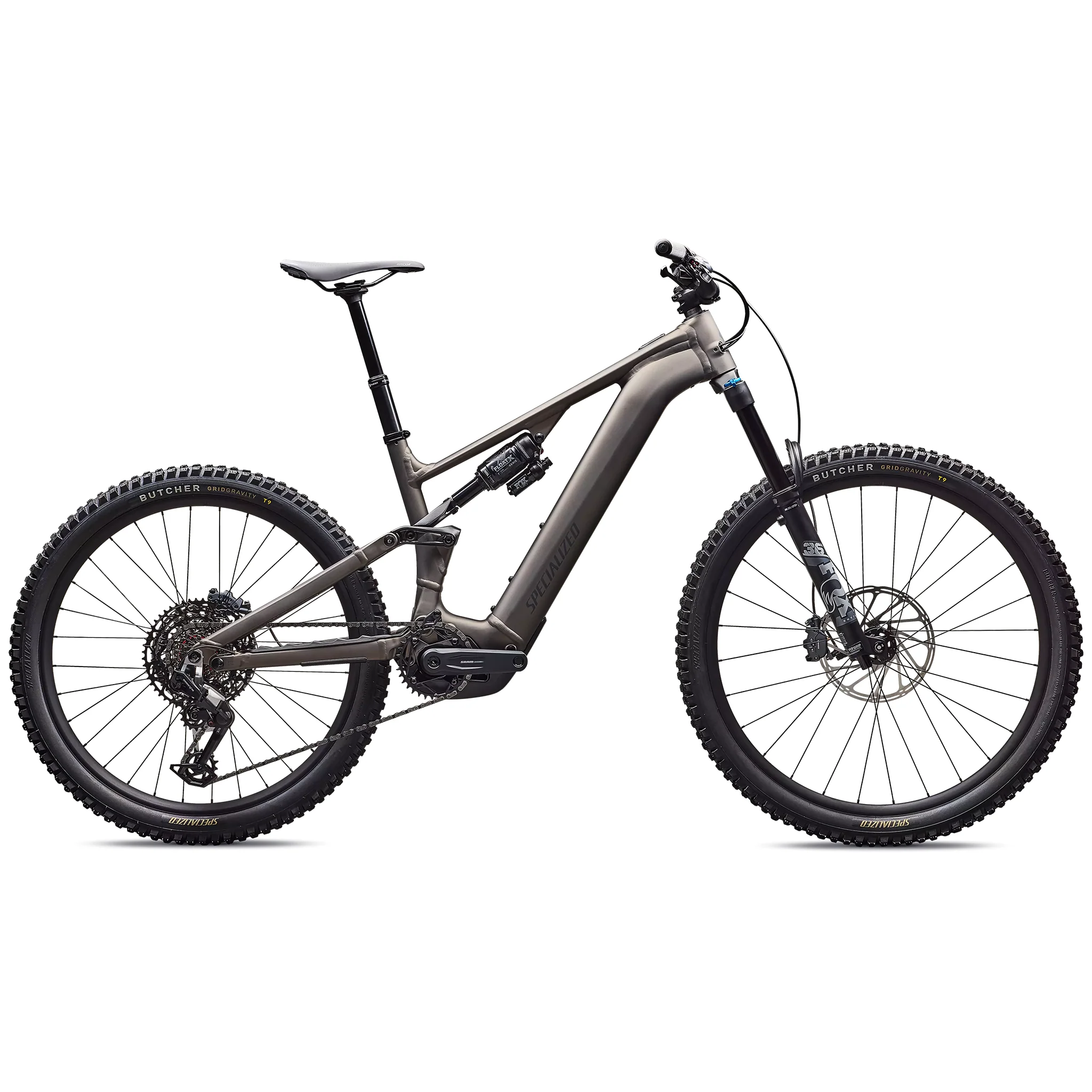

Turbo Levo 4 Comp Alloy

Turbo Levo 4 Comp Alloy

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

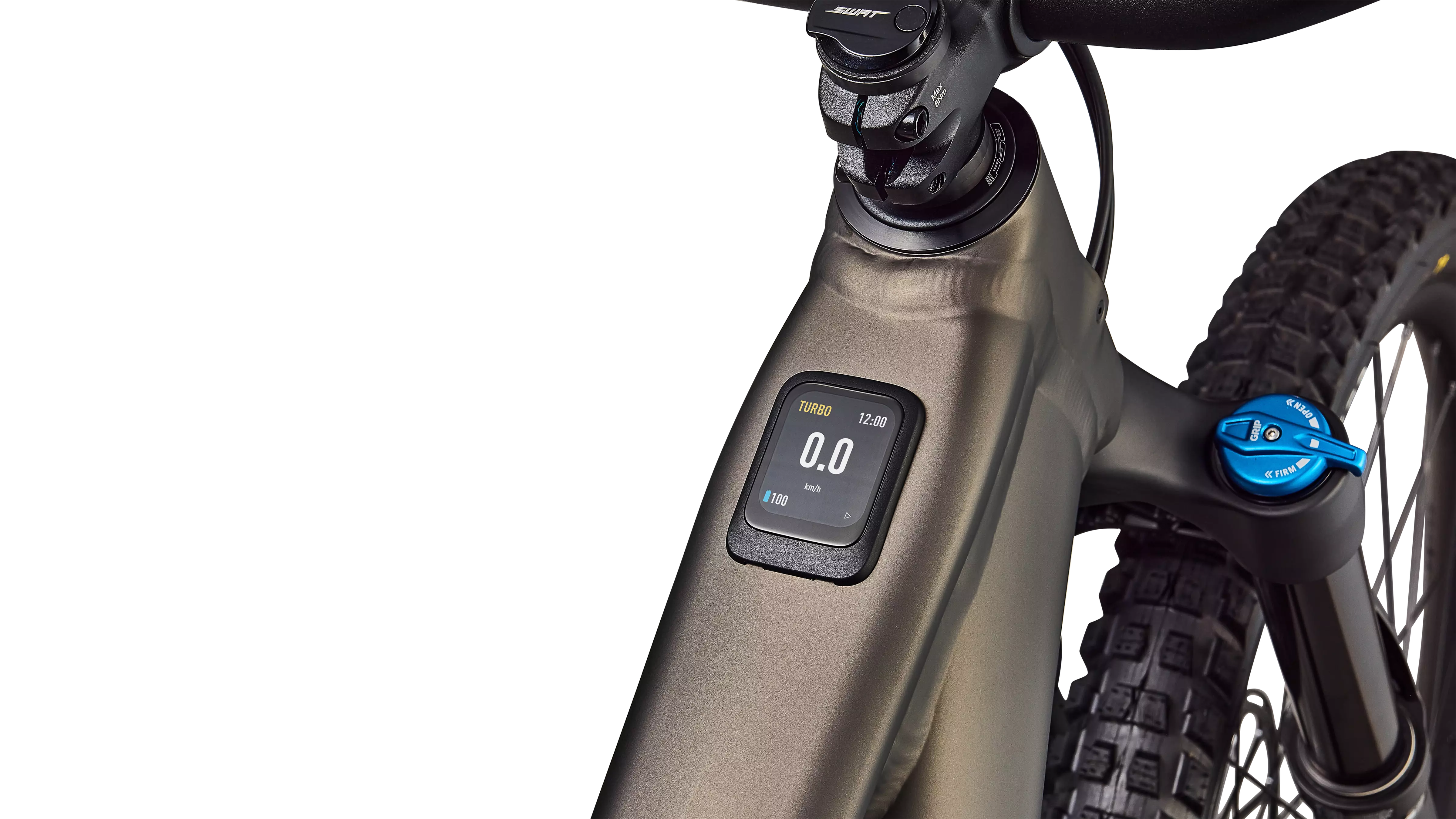

  • UI/Remote: All-new MasterMind T3 display system with 2.2" high-resolution color screen; fully customizable through the Specialized App

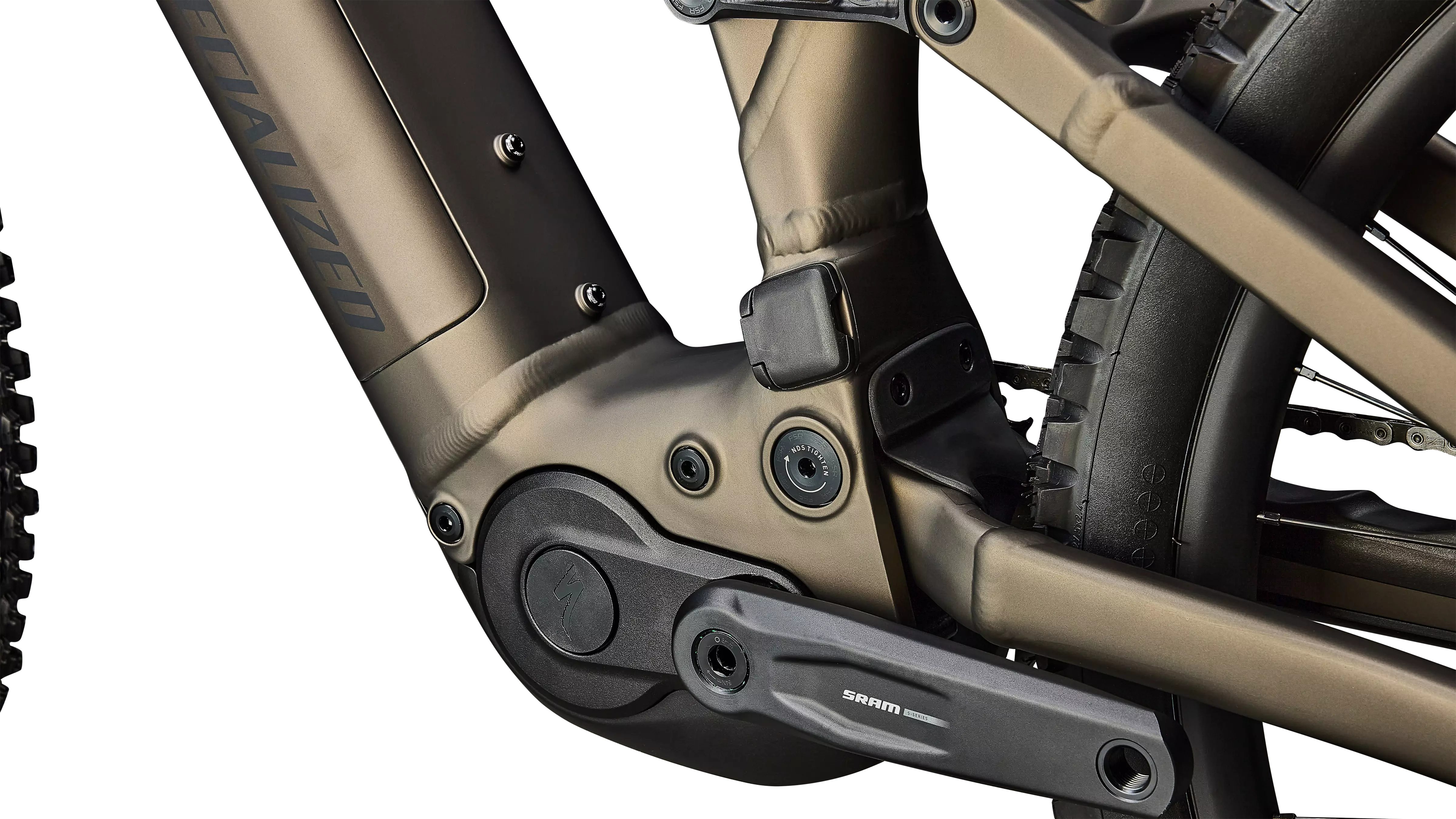

  • Motor: Specialized 3.1 Motor with 105 Nm torque and 810 W power
  • Charger: Specialized 4A Charger
  • Battery: 840 Wh battery

Specs

Frameset Seat Binder Alloy, 38.6 mm
Frameset Frame All-new Levo 4 M5 Alloy frame, 150 mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage, 148 mm spacing, 29" front wheel / 27.5" rear wheel, fork travel up to 180 mm

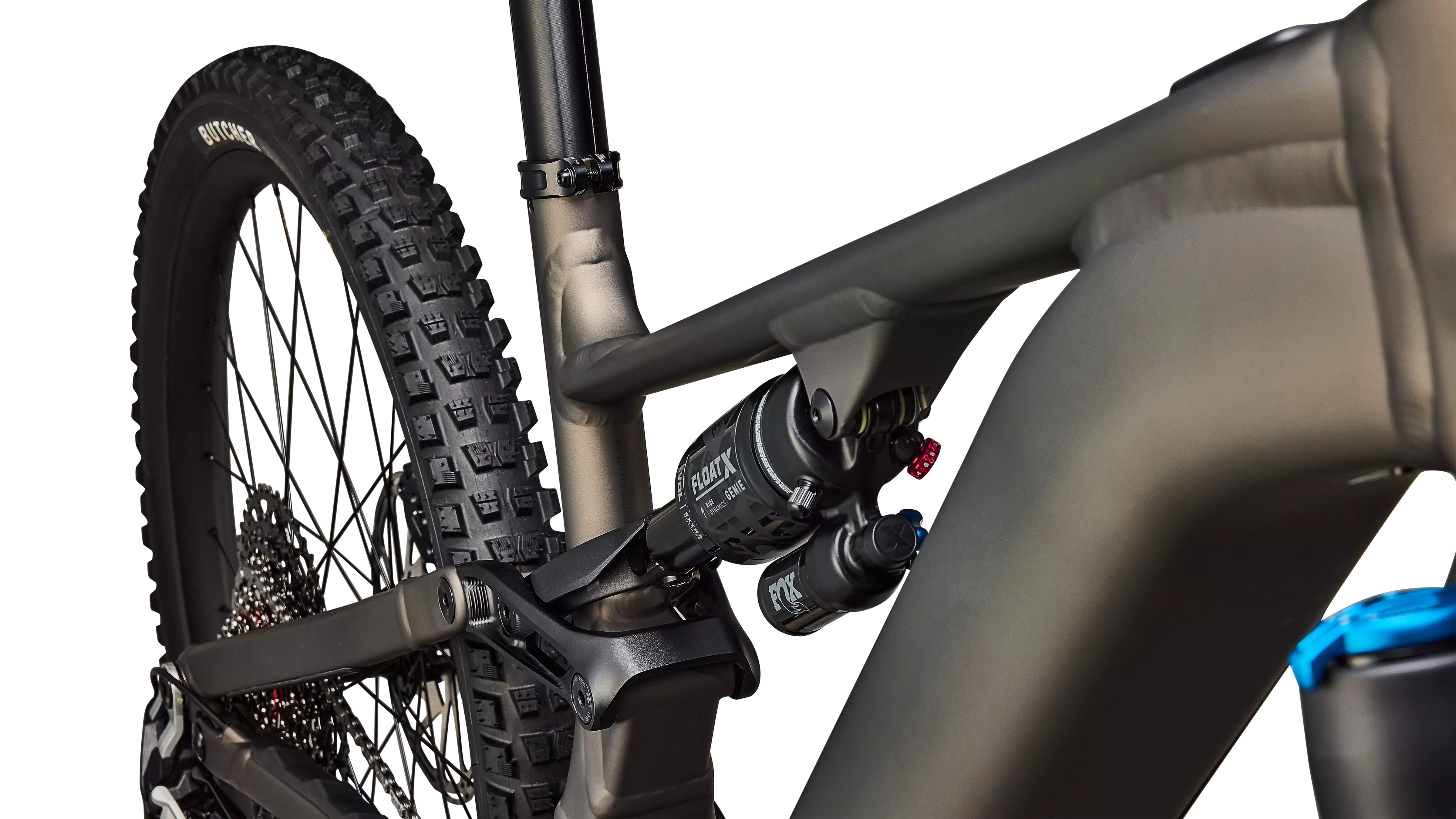

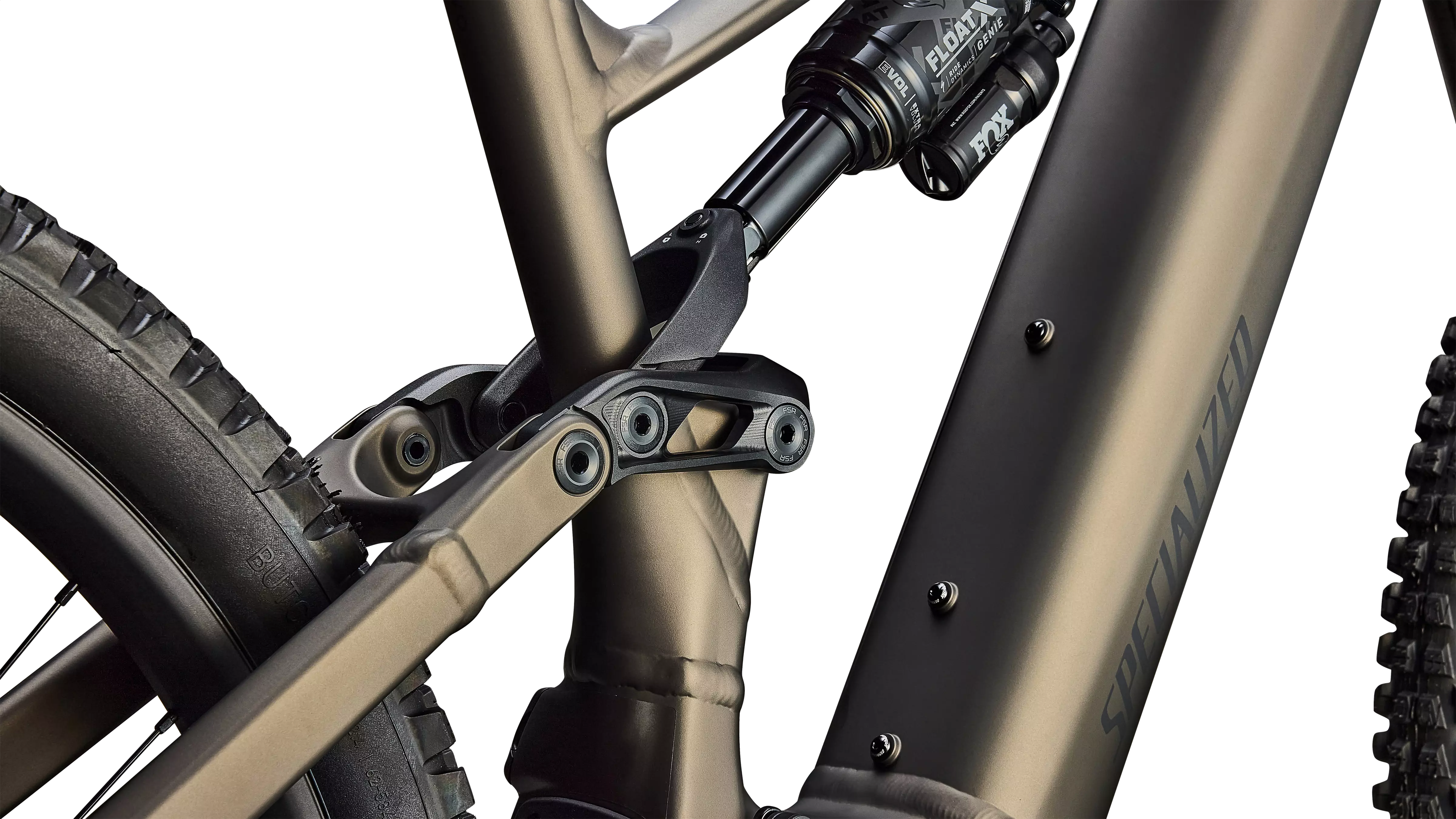

Suspension Rear Shock FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55 mm
Suspension Fork FOX 36 Rhythm, 29", S2–S6: 160 mm / S1: 150 mm, GRIP damper with Sweep adjust, 44 mm offset, 15x110 mm boost, through axle
Brakes Front Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220 mm Centerline rotor
Brakes Rear Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200 mm Centerline rotor
Drivetrain Chainrings SRAM 34t T-Type chainring, 104 BCD, steel
Drivetrain Chain SRAM 70 Transmission Flattop Chain, 12-speed
Drivetrain Shift Levers SRAM 90 trigger, 12-speed, single click
Drivetrain Rear Derailleur SRAM Eagle 90 T-Type
Drivetrain Crankset SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55 mm chainline, 155 mm
Drivetrain Cassette SRAM 12-speed, 10–52t
Wheels & Tires Rear Tire Butcher GRID GRAVITY, GRIPTON® T9 compound, TLR, 27.5x2.4"
Wheels & Tires Front Tire Butcher GRID GRAVITY, GRIPTON® T9 compound, TLR, 29x2.4"
Wheels & Tires Spokes DT Swiss Industry
Wheels & Tires Front Hub Alloy, sealed cartridge bearings, 15x110 mm thru-axle, 28h
Wheels & Tires Rear Hub Alloy, sealed cartridge bearings, 12x148 mm thru-axle, 32h
Wheels & Tires Rims Specialized hookless alloy, 30 mm inner width, tubeless ready
Wheels & Tires Inner Tubes Standard, Presta valve
Cockpit Stem Alloy Trail Stem, 35 mm bar bore

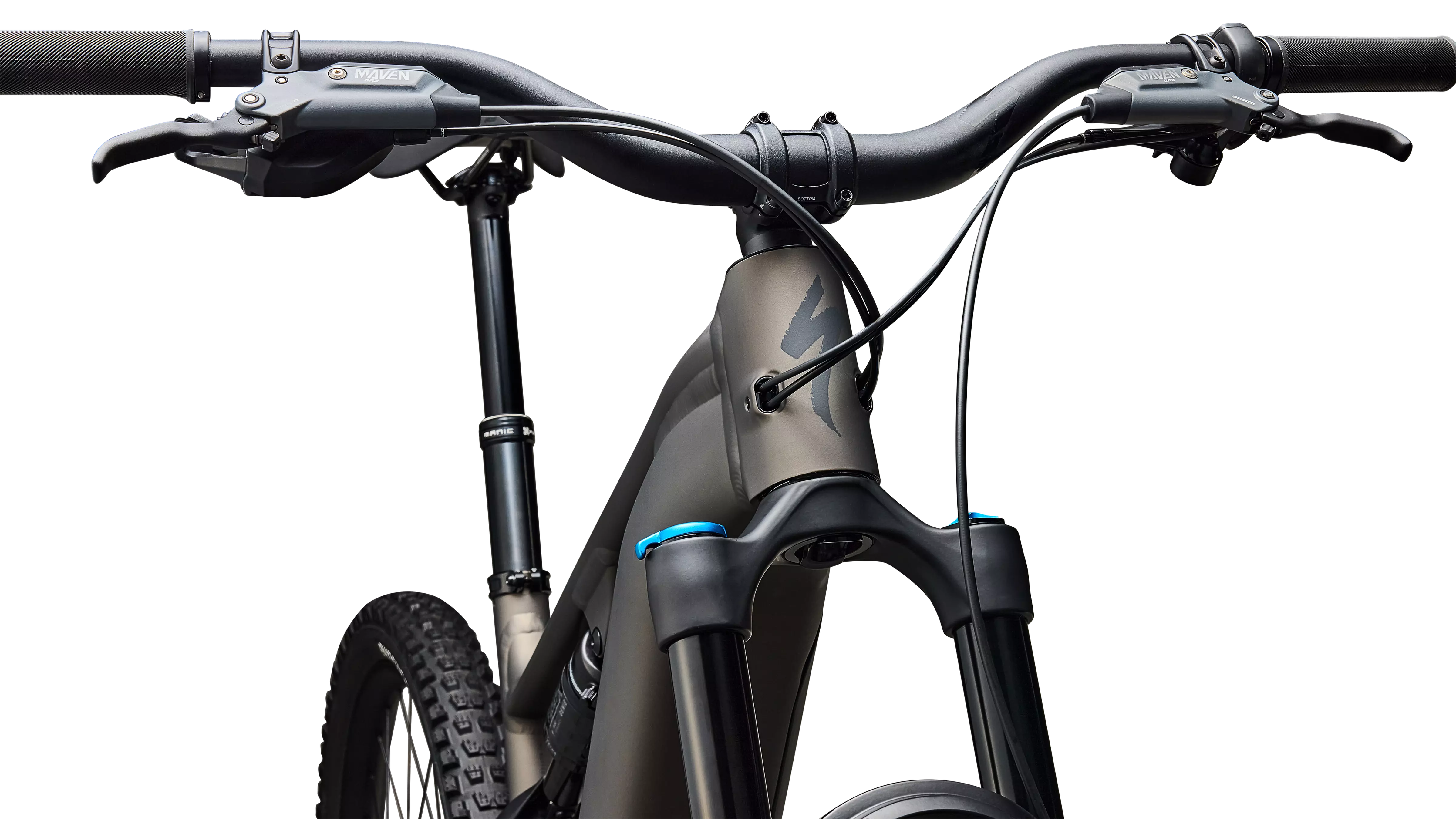

Cockpit Handlebars Specialized 6061 alloy, 6° upsweep, 8° backsweep; S1–S2: 780 mm width / 30 mm rise; S3–S6: 800 mm width / 50 mm rise
Cockpit Saddle Bridge Comp, Hollow Cr-mo rails, 155/143
Cockpit Grips Specialized Trail Grips
Cockpit Seatpost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9; S1: 100 mm, S2: 125 mm, S3: 150 mm, S4: 170 mm, S5/S6: 190 mm
Accessories SWAT SWAT internal downtube storage
Product Details Product ID 221343
Product Details Compliance Certification Certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS
Weight Weight 25.70 kg (56 lb, 11.2 oz)
Weight Weight Size S4

Geometry



 S1 S2 S3 S4 S5 S6
Crank Length 155 155 155 155 155 155
Handlebar Width 780 780 800 800 800 800
Stem Length 40 40 40 40 40 40
Saddle Width 155 155 143 143 143 143
Seatpost Length 100 125 150 170 190 190
Stack 609 618 626 638 652 667
Reach 407 435 455 480 505 535
Headtube Length 94 95 103 117 132 149
Headtube Angle 64° 64.5° 64.5° 64.5° 64.5° 64.5°
BB Height 355 350 350 350 350 350
BB Drop 24.13 29.5 29.5 29.5 29.5 29.5
Trail 132 132 137 132 132 132
Fork Length (full) 567 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44 44
Front Center 744 765 789 820 851 888
Chainstay Length 435 435 435 435 435 435
Wheelbase 1179 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 556 578 599 627 655 689
Bike Standover Height 753 753 754 753 758 761
Seat Tube Length 379 390 405 425 445 465
Seat Tube Angle 76° 77° 77° 77° 77° 77°
Saddle Height for Effective ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 264 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80 80
Select Color
Select Size
From $2,281.31

Original: $6,518.04

-65%
Turbo Levo 4 Comp Alloy—

$6,518.04

$2,281.31
