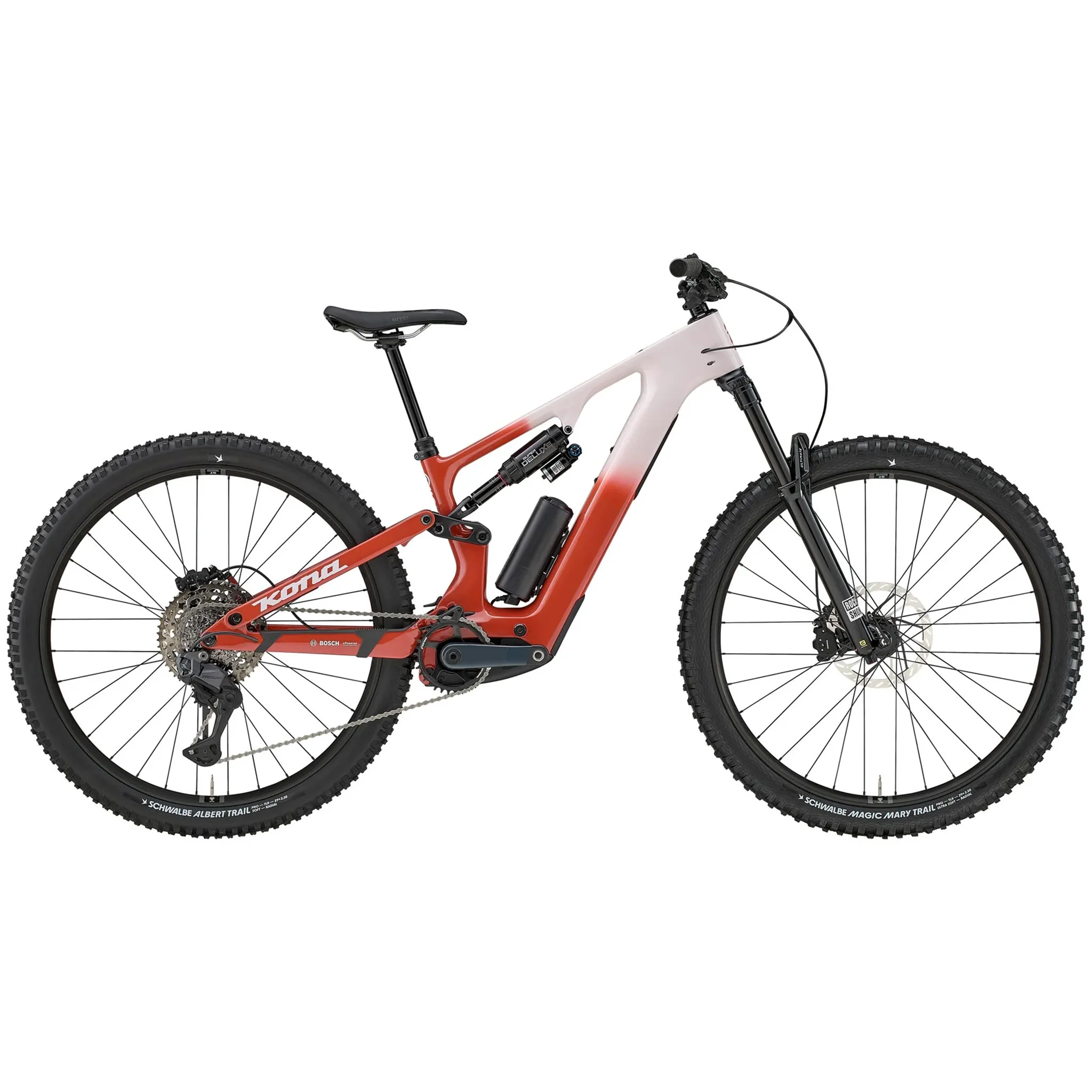

Remote 160 CR

Every now & then a bike comes along that just drops your jaw. Your friends’ eyes widen when they see you on it. You can’t quite explain it, but you feel instantly connected to this new shred mate. What is it about this bike? The balance? The way it stays planted while devouring everything in its path? The unmatched responsiveness and pop over roots, rocks, and lips? Or that audible BRAAP in corners? Maybe it’s the confidence it builds—fast—as you zip up climbs. It’s definitely all of the above. Careful now, a bike like this might tempt you to throw caution to the wind: ride everything, do nothing else. Eat, sleep, ride, repeat.

The Remote 160 CR is that bike. It rides like your carbon Process 153—with an engine that kicks like a mechanical horse. Its sleek carbon frame features a purposefully low center of gravity. The Bosch SX system is silky smooth, and the PowerMore range extender hugs the motor to keep weight balanced. The SX system adapts to your ride, while the flip chip lets you go MX today or match wheel sizes tomorrow. Saddle up. Ride it once—good luck going back.

• Drive Unit: Bosch Performance Line SX (20mph / 32kmh)
• Battery: Bosch PowerTube 400 / PowerMore 250
• Display: Kiox 400c
• Charger: Bosch 4A (110V)

Specs

Frame	Kona Carbon, 160mm Travel
Sizes	S, M, L, XL
Rear Shock	RockShox Super Deluxe Ultimate 230x60
Fork	RockShox Lyrik Ultimate 160mm 29"
Crankset	Prowheel Carbon 155mm 34t
Chain	Shimano CUES LG500
Cassette	Shimano 11-50t 11spd
Chainguide	One Up
Front Derailleur	n/a
Rear Derailleur	Shimano Deore Di2
Shifter	Shimano Deore Di2 Wireless
Brake Calipers	SRAM Maven Base
Front Brake Rotor	SRAM HS2 200mm 6 bolt
Rear Brake Rotor	SRAM HS2 200mm 6 bolt
Brake Levers	SRAM Maven Base
Headset	FSA NO.55R/57 ZS56/ZS56
Handlebar	Kona Back 10º / Up 5º / Rise 38mm / Width: S 760mm / M 780mm / L-XL 800mm
Stem	Kona 35mm / Rise 0º / Length 40mm
Seatpost	TranzX Dropper +RAD Internal 31.6mm / Length: S 150mm / M 170mm / L 200mm / XL 230mm
Seat Clamp	Kona Clamp 34.9mm
Grips	Key Grip Lock-on Black
Saddle	WTB Volt SL Fusion
Front Hub	Formula 15x110mm
Rear Hub	Formula 12x148mm HG
Spokes	Stainless 2.0mm Black
Rims	WTB ST Tough i30
Front Tire	Schwalbe Magic Mary 29x2.5" Trail Pro Ultra Soft Radial
Rear Tire	Schwalbe Albert 29x2.5" (Size S: 27.5x2.5") Trail Pro Soft Radial
Drive Unit	Bosch Performance Line SX 20mph/32kmh
Battery	Bosch PowerTube 400 / PowerMore 250
Display	Kiox 400c
Charger	Bosch 4A (110V)
Battery Lock	n/a
Paint Color	Gloss Burnt Orange & Clay Fade w/ Clay & Burnt Orange Decals

Geometry

	S	M	L	XL
ST Length	380	380	420	450
TT Length	574	599	628	667
Reach	430	455	480	515
Stack	627	627	637	648
Standover	754	761	762	765
HT Angle	64	64	64	64
HT Length	112	112	123	135
ST Angle	77	77	76.9	76.8
CS Length	445	445	445	445
BB Drop	15	25	25	25
BB Height	350	350	350	350
Wheelbase	1217	1242	1272	1312
Front Center	773	798	828	868
Fork Length	576	576	576	576
Fork Offset	44	44	44	44
