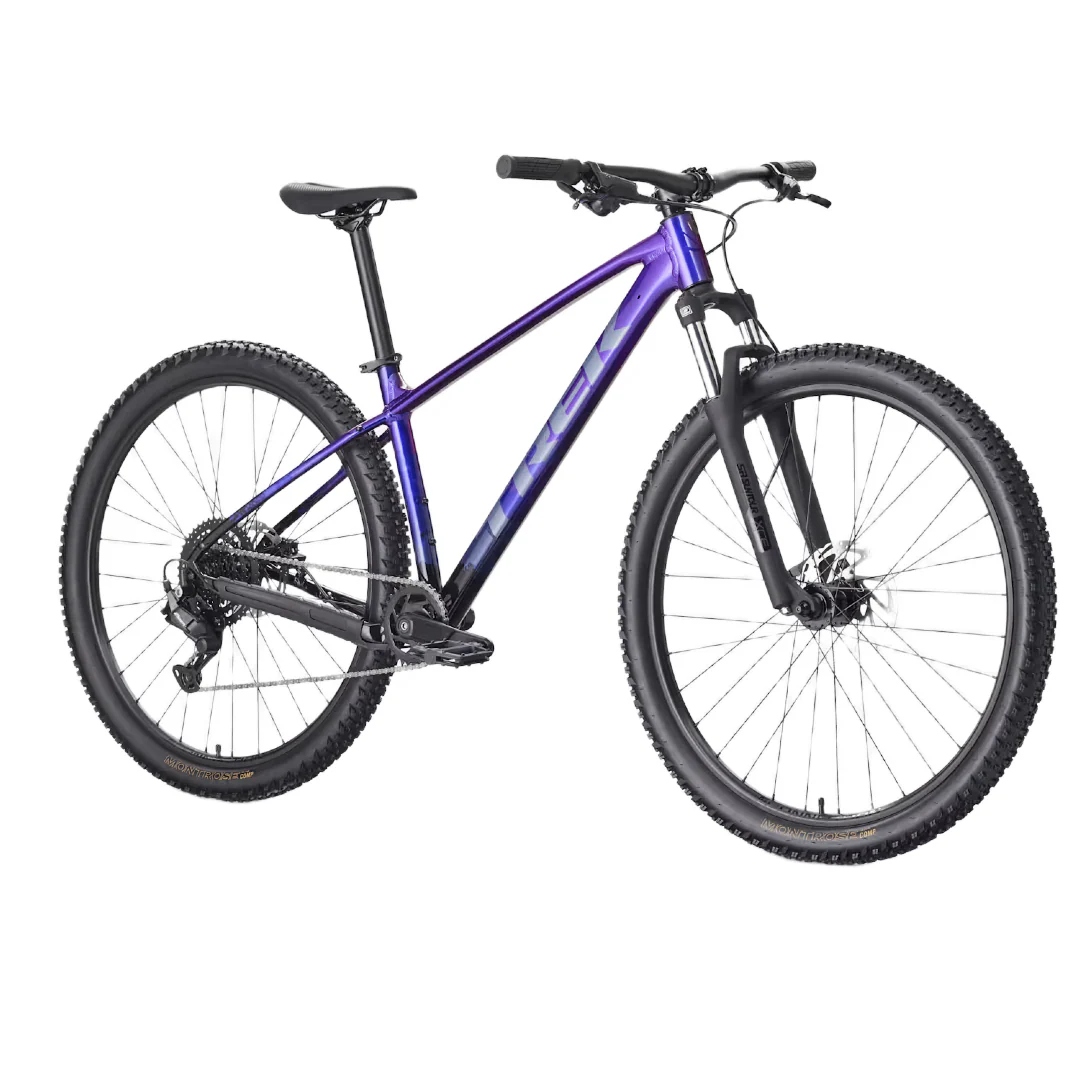

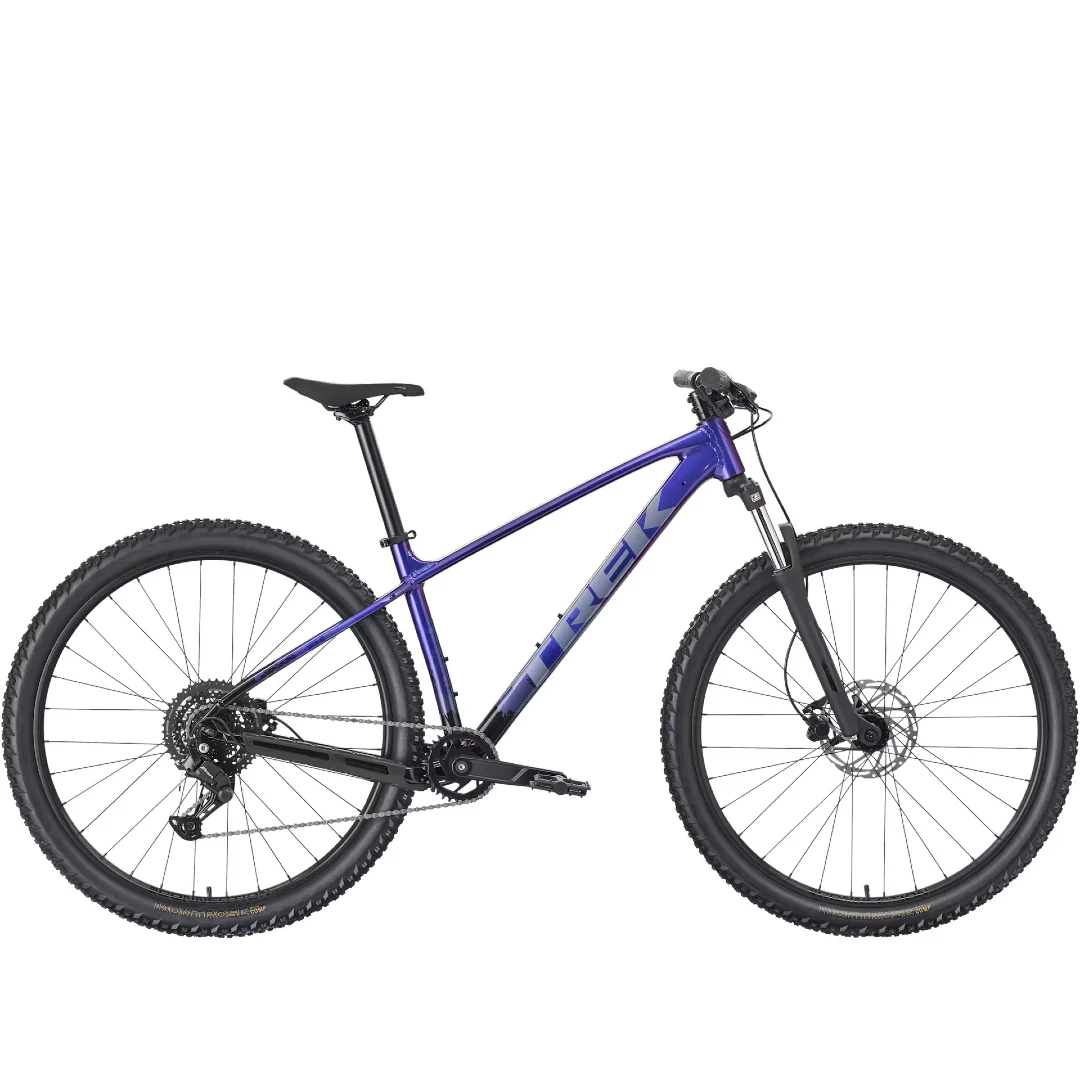

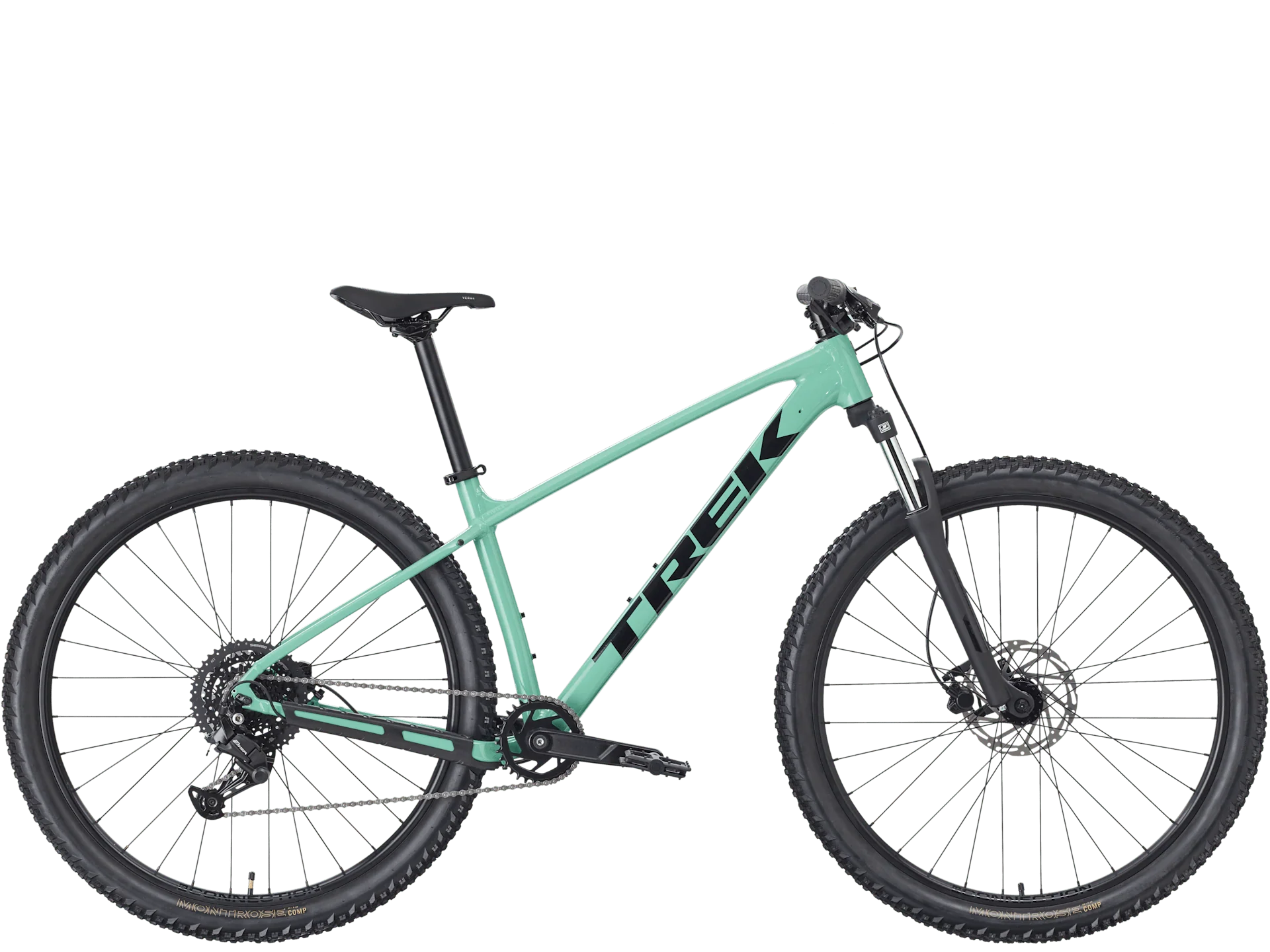

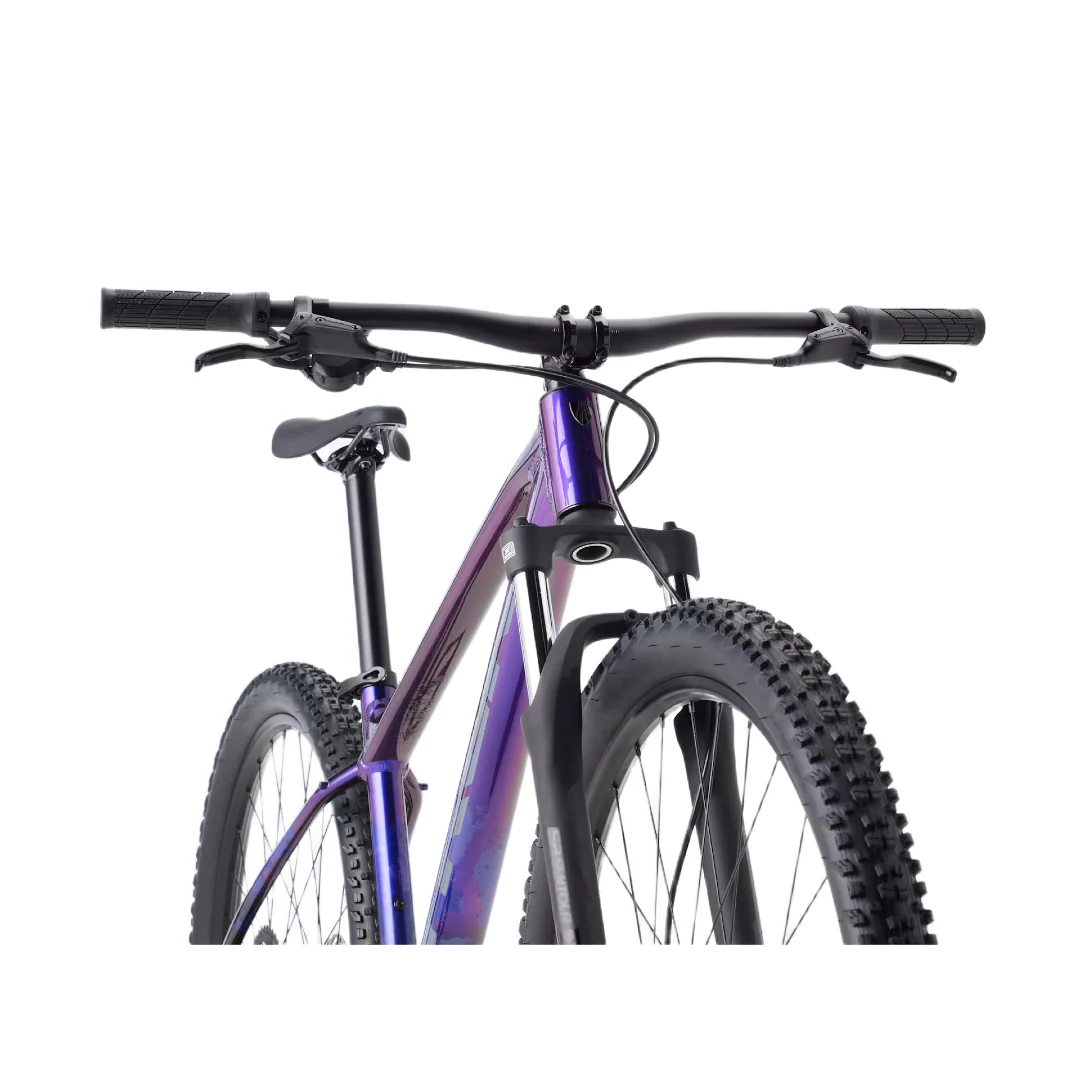

Marlin 4
Marlin 4 is a trail-worthy daily rider built for everything from weekday commutes to weekend adventures. It features a stable frame with a suspension fork to smooth rough paths, plus 8-speed Shimano ESSA shifting and mounts for racks and a kickstand. Whether you're rolling to class, work, or the trailhead, Marlin 4 brings the comfort and confidence of a commuter with the ruggedness of a real mountain bike.
Specifications
| Frame | XXS–XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper routing, rack & kickstand mount, 135x5mm ThruSkew. S–XL: Alpha Silver Aluminum, internal derailleur & dropper routing, rack & kickstand mount, 135x5mm ThruSkew |
| Fork | XXS: SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 26" wheel, 100 mm travel. XS: SR Suntour XCE 28, coil spring, preload, 27.5" wheel, 80 mm travel. S: SR Suntour XCE 28, coil spring, preload, 27.5" wheel, 100 mm travel. M–XL: SR Suntour XCE 28, coil spring, preload, 29" wheel, 100 mm travel |
| Front Hub | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Front Skewer | 116 x 5 mm quick release |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Rear Skewer | 173 x 5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tires | XXS: Bontrager Montrose Comp 26×2.35". XS–S: 27.5×2.4". M–XL: 29×2.4". Wire bead, 30 TPI |
| Shifter | Shimano M315, 8-speed |
| Rear Derailleur | Shimano ESSA U2000 |
| Crank | XXS–XS: ProWheel alloy, 30T narrow-wide steel ring, 160 mm. S–ML: 170 mm. L–XL: 175 mm |
| Bottom Bracket | Threaded cartridge bottom bracket |
| Cassette | Shimano HG300, 11–45, 8-speed |
| Chain | KMC Z8.3, 8-speed |
| Pedals | Nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | XXS: 31.6 mm, 300 mm length. XS–M: 31.6 mm, 330 mm length. ML–XL: 31.6 mm, 400 mm length |
| Handlebar | XXS–XS: Bontrager alloy, 690 mm width, 5 mm rise. S: 720 mm width, 15 mm rise. M–XL: 750 mm width, 15 mm rise |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | XXS–S: Bontrager Comp, 31.8 mm, 7°, 35 mm. M–L: 50 mm. XL: 60 mm |
| Headset | Semi-integrated, 1-1/8" |
| Brakes | XXS–S: Tektro HD-M276 hydraulic disc. M–XL: Tektro HD-M275 hydraulic disc |
| Brake Rotors | 160 mm (all sizes) + 180 mm rotors for M–XL |
| Weight | Size M: 14.90 kg / 32.85 lbs |
| Weight Limit | 300 lb (136 kg) total system weight |
Select Color
Select Size
From $190.11
Original: $543.16
-65%Marlin 4—
$543.16
$190.11
Description
Marlin 4 is a trail-worthy daily rider built for everything from weekday commutes to weekend adventures. It features a stable frame with a suspension fork to smooth rough paths, plus 8-speed Shimano ESSA shifting and mounts for racks and a kickstand. Whether you're rolling to class, work, or the trailhead, Marlin 4 brings the comfort and confidence of a commuter with the ruggedness of a real mountain bike.
Specifications
| Frame | XXS–XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper routing, rack & kickstand mount, 135x5mm ThruSkew. S–XL: Alpha Silver Aluminum, internal derailleur & dropper routing, rack & kickstand mount, 135x5mm ThruSkew |
| Fork | XXS: SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 26" wheel, 100 mm travel. XS: SR Suntour XCE 28, coil spring, preload, 27.5" wheel, 80 mm travel. S: SR Suntour XCE 28, coil spring, preload, 27.5" wheel, 100 mm travel. M–XL: SR Suntour XCE 28, coil spring, preload, 29" wheel, 100 mm travel |
| Front Hub | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Front Skewer | 116 x 5 mm quick release |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Rear Skewer | 173 x 5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tires | XXS: Bontrager Montrose Comp 26×2.35". XS–S: 27.5×2.4". M–XL: 29×2.4". Wire bead, 30 TPI |
| Shifter | Shimano M315, 8-speed |
| Rear Derailleur | Shimano ESSA U2000 |
| Crank | XXS–XS: ProWheel alloy, 30T narrow-wide steel ring, 160 mm. S–ML: 170 mm. L–XL: 175 mm |
| Bottom Bracket | Threaded cartridge bottom bracket |
| Cassette | Shimano HG300, 11–45, 8-speed |
| Chain | KMC Z8.3, 8-speed |
| Pedals | Nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | XXS: 31.6 mm, 300 mm length. XS–M: 31.6 mm, 330 mm length. ML–XL: 31.6 mm, 400 mm length |
| Handlebar | XXS–XS: Bontrager alloy, 690 mm width, 5 mm rise. S: 720 mm width, 15 mm rise. M–XL: 750 mm width, 15 mm rise |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | XXS–S: Bontrager Comp, 31.8 mm, 7°, 35 mm. M–L: 50 mm. XL: 60 mm |
| Headset | Semi-integrated, 1-1/8" |
| Brakes | XXS–S: Tektro HD-M276 hydraulic disc. M–XL: Tektro HD-M275 hydraulic disc |
| Brake Rotors | 160 mm (all sizes) + 180 mm rotors for M–XL |
| Weight | Size M: 14.90 kg / 32.85 lbs |
| Weight Limit | 300 lb (136 kg) total system weight |
