FX+ 1 Midstep

FX+ 1 Midstep

Take the world by throttle

FX+ 1 is a lightweight and fast throttle e-bike built for cruising through town with an ear-to-ear grin. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.

  • Battery: 520Wh integrated downtube battery
  • Charger: Trek Easy Mag charger
  • Charger Output: 2.7A, 54.9V
  • Charger Input: 100V–240V AC
  • Display: LCD display
  • Motor: Rear hub drive motor
  • Motor Power: 500W
  • Motor Torque: 60 Nm
  • Motor Spoke Count: 36H
  • E-bike Class: Class 2

Specifications

Frame Alpha Gold Aluminum
Routing Internal cable routing
Battery Integration Internal battery
Mounts Rack & fender mounts
Brake Mount Flat mount disc brake
Kickstand Mount Yes
Hub Motor Spacing 144.5mm OLD
Fork Material Alloy
Brake Routing Internal
Mounts Fender & rack mounts
Skewer Type ThruSkew 5mm bolt-on
Front Hub Alloy low-flange, 6-bolt disc, 36h, QR
Front Skewer 132x5mm QR, ThruSkew
Rim Alloy double wall, 36h
Tire Bontrager GR0 Comp, 650x50mm, wire bead, 60 tpi
Max Tire Size 650x50mm
Battery 520Wh integrated downtube battery
Charger Trek Easy Mag charger
Charger Output 2.7A, 54.9V
Charger Input 100V–240V AC
Display LCD display
Motor Rear hub drive motor
Motor Power 500W
Motor Torque 60 Nm
Motor Spoke Count 36H
E-bike Class Class 2
Shifter Shimano M315, 8-speed
Rear Derailleur Shimano ESSA U2000
Crank Alloy crank, 170mm
Chainring 40T steel
Cassette Shimano HG400, 11–45T, 8-speed
Chain KMC Z8.3
Pedals Bontrager City pedals
Max Chainring Size 1x: 40T
Saddle Bontrager Sport Women's
Seatpost (S/M) Bontrager alloy, 31.6mm, 12mm offset, 330mm
Seatpost (L) Bontrager alloy, 31.6mm, 12mm offset, 400mm
Handlebar (S/M) Bontrager alloy, 31.8mm, 15mm rise, 690mm
Handlebar (L) Bontrager alloy, 31.8mm, 15mm rise, 720mm
Grips Bontrager XR Endurance Comp, lock-on
Stem (S/M) Bontrager Elite, 31.8mm, 7Β°, 80mm
Stem (L) Bontrager Elite, 31.8mm, 7Β°, 90mm
Brake System Rush BH-286 hydraulic disc
Rotor Size 180mm front & rear
Rear Light Sate-Lite M-15
Rear Light Features Turn signal & brake light
Headlight Herrmans MR8 LED
Headlight Output 180 lumen / 60 lux
Kickstand Alloy rear mount
Bike Weight 22.00 kg / 48.51 lb (Size M)
Total Weight Limit 136 kg / 300 lb (bike + rider + cargo)

Geometry


 S (45cm) M (50cm) L (55cm)
Wheel Size 27.5" 27.5" 700c
A β€” Seat Tube 40.8 46.3 50.7
B β€” Seat Tube Angle 73.5Β° 73.0Β° 73.0Β°
C β€” Head Tube Length 15.5 17.0 20.0
D β€” Head Angle 70.0Β° 70.5Β° 71.0Β°
E β€” Effective Top Tube 56.9 57.4 59.2
F β€” Bottom Bracket Height 28.6 28.6 28.6
G β€” Bottom Bracket Drop 7.0 7.0 7.0
H β€” Chainstay Length 46.8 46.8 46.8
I β€” Offset 5.0 5.0 5.0
J β€” Trail 7.6 7.3 6.9
K β€” Wheelbase 109.2 109.5 110.9
L β€” Standover 65.5 67.2 69.3
M β€” Frame Reach 38.2 38.5 39.3
N β€” Frame Stack 60.4 62.0 65.0


Select Color
Select Size
From $760.44

Original: $2,172.68

-65%
FX+ 1 Midstepβ€”

$2,172.68

$760.44

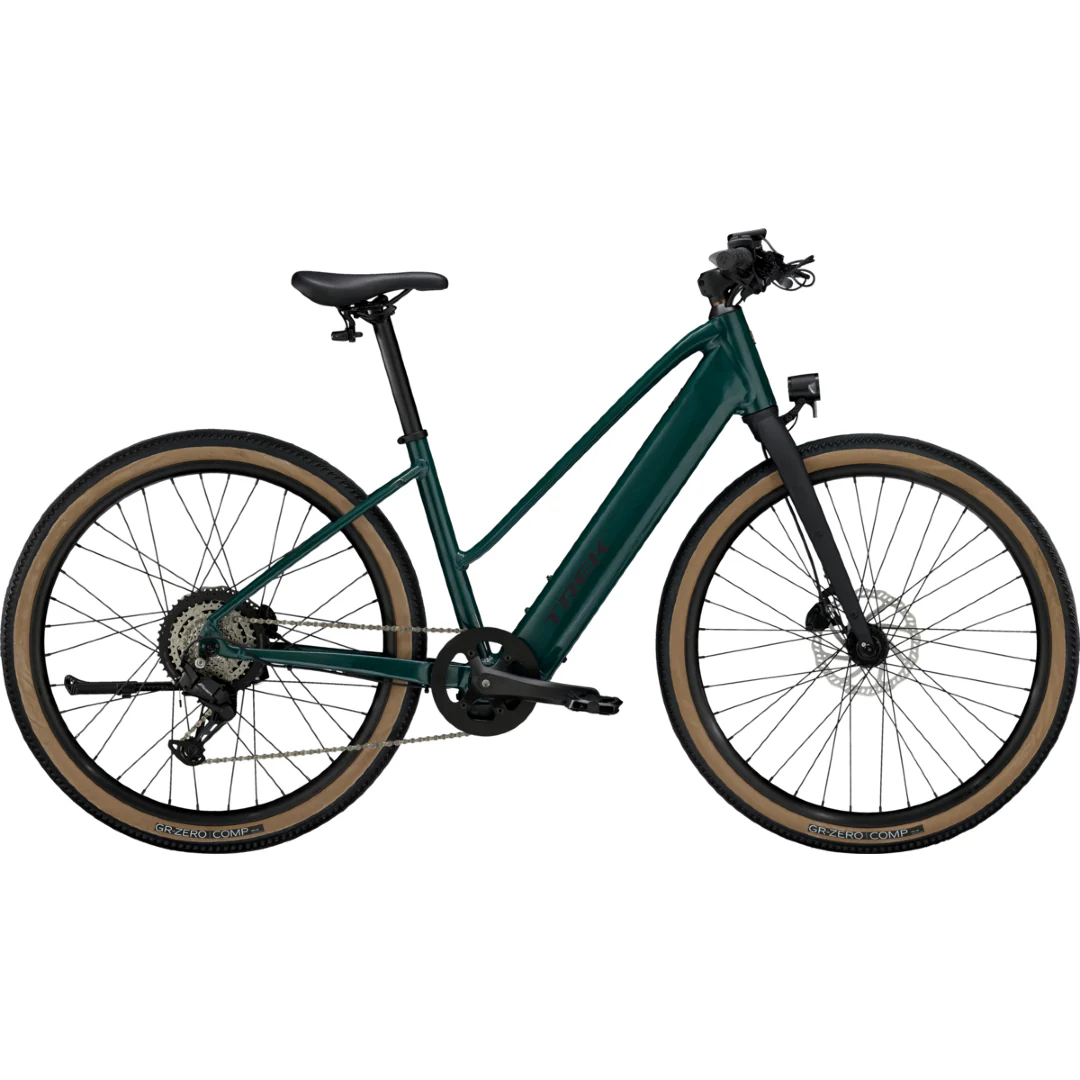

Product image 1
Product image 2

Description

Take the world by throttle

FX+ 1 is a lightweight and fast throttle e-bike built for cruising through town with an ear-to-ear grin. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.

  • Battery: 520Wh integrated downtube battery
  • Charger: Trek Easy Mag charger
  • Charger Output: 2.7A, 54.9V
  • Charger Input: 100V–240V AC
  • Display: LCD display
  • Motor: Rear hub drive motor
  • Motor Power: 500W
  • Motor Torque: 60 Nm
  • Motor Spoke Count: 36H
  • E-bike Class: Class 2

Specifications

Frame Alpha Gold Aluminum
Routing Internal cable routing
Battery Integration Internal battery
Mounts Rack & fender mounts
Brake Mount Flat mount disc brake
Kickstand Mount Yes
Hub Motor Spacing 144.5mm OLD
Fork Material Alloy
Brake Routing Internal
Mounts Fender & rack mounts
Skewer Type ThruSkew 5mm bolt-on
Front Hub Alloy low-flange, 6-bolt disc, 36h, QR
Front Skewer 132x5mm QR, ThruSkew
Rim Alloy double wall, 36h
Tire Bontrager GR0 Comp, 650x50mm, wire bead, 60 tpi
Max Tire Size 650x50mm
Battery 520Wh integrated downtube battery
Charger Trek Easy Mag charger
Charger Output 2.7A, 54.9V
Charger Input 100V–240V AC
Display LCD display
Motor Rear hub drive motor
Motor Power 500W
Motor Torque 60 Nm
Motor Spoke Count 36H
E-bike Class Class 2
Shifter Shimano M315, 8-speed
Rear Derailleur Shimano ESSA U2000
Crank Alloy crank, 170mm
Chainring 40T steel
Cassette Shimano HG400, 11–45T, 8-speed
Chain KMC Z8.3
Pedals Bontrager City pedals
Max Chainring Size 1x: 40T
Saddle Bontrager Sport Women's
Seatpost (S/M) Bontrager alloy, 31.6mm, 12mm offset, 330mm
Seatpost (L) Bontrager alloy, 31.6mm, 12mm offset, 400mm
Handlebar (S/M) Bontrager alloy, 31.8mm, 15mm rise, 690mm
Handlebar (L) Bontrager alloy, 31.8mm, 15mm rise, 720mm
Grips Bontrager XR Endurance Comp, lock-on
Stem (S/M) Bontrager Elite, 31.8mm, 7Β°, 80mm
Stem (L) Bontrager Elite, 31.8mm, 7Β°, 90mm
Brake System Rush BH-286 hydraulic disc
Rotor Size 180mm front & rear
Rear Light Sate-Lite M-15
Rear Light Features Turn signal & brake light
Headlight Herrmans MR8 LED
Headlight Output 180 lumen / 60 lux
Kickstand Alloy rear mount
Bike Weight 22.00 kg / 48.51 lb (Size M)
Total Weight Limit 136 kg / 300 lb (bike + rider + cargo)

Geometry


 S (45cm) M (50cm) L (55cm)
Wheel Size 27.5" 27.5" 700c
A β€” Seat Tube 40.8 46.3 50.7
B β€” Seat Tube Angle 73.5Β° 73.0Β° 73.0Β°
C β€” Head Tube Length 15.5 17.0 20.0
D β€” Head Angle 70.0Β° 70.5Β° 71.0Β°
E β€” Effective Top Tube 56.9 57.4 59.2
F β€” Bottom Bracket Height 28.6 28.6 28.6
G β€” Bottom Bracket Drop 7.0 7.0 7.0
H β€” Chainstay Length 46.8 46.8 46.8
I β€” Offset 5.0 5.0 5.0
J β€” Trail 7.6 7.3 6.9
K β€” Wheelbase 109.2 109.5 110.9
L β€” Standover 65.5 67.2 69.3
M β€” Frame Reach 38.2 38.5 39.3
N β€” Frame Stack 60.4 62.0 65.0
